You might want to host a node on one server and then connect to it from a UI hosted on another, e.g. . This will not be possible unless you set up a secure proxy for websocket connections. Let's see how we can set up WSS on a remote Substrate node.
Note: this should only be done for sync nodes used as back-end for some dapps or projects. Never open websockets to your validator node - there's no reason to do that and it can only lead to security gaffes.
In this guide we'll be using Ubuntu 18.04 hosted on a \$10 DigitalOcean droplet. We'll assume you're using a similar OS, and that you have nginx installed (if not, run sudo apt-get install nginx).
Whether it's a generic Substrate node, a Kusama node, or your own private blockchain, they all default to the same websocket connection: port 9944 on localhost. For this example, we'll set up a Kusama sync node (non-validator).
Create a new server on your provider of choice or locally at home (preferred). We'll assume you're using Ubuntu 18.04. Then install Substrate and build the node.
This will start the syncing process with Kusama's mainnet.
THE --rpc-cors MODE NEEDS TO BE SET TO ALL SO THAT ALL EXTERNAL CONNECTIONS ARE ALLOWED
To get WSS (secure websocket), you need an SSL certificate. There are two possible approaches.
The first approach is getting a dedicated domain, redirecting its nameservers to your IP address, setting up an Nginx server for that domain, and finally for Nginx setup. This will auto-generate an SSL certificate and include it in your Nginx configuration. This will let you connect Polkadot-JS UI to a URL like mynode.mydomain.com rather than 82.196.8.192:9944, which is arguably more user friendly.
This is simple to do on cloud hosting providers or if you have a static IP, but harder to pull off when running things from your home server.
The second approach and one we'll follow here is generating a self-signed certificate and relying on the raw IP address of your node when connecting to it.
Generate a self-signed certificate.
Now it's time to tell Nginx to use these certificates. The server block below is all you need, but keep in mind that you need to replace some placeholder values. Notably:
SERVER_ADDRESS should be replaced by your domain name if you have it, or your server's IP address if not.
CERT_LOCATION should be /etc/letsencrypt/live/YOUR_DOMAIN/fullchain.pem if you used Certbot, or /etc/ssl/certs/nginx-selfsigned.crt if self-signed.
CERT_LOCATION_KEY should be /etc/letsencrypt/live/YOUR_DOMAIN/privkey.pem if you used Certbot, or /etc/ssl/private/nginx-selfsigned.key if self-signed.
CERT_DHPARAM should be /etc/letsencrypt/ssl-dhparams.pem if you used Certbot, and /etc/ssl/certs/dhparam.pem if self-signed.
Restart nginx after setting this up: sudo service nginx restart.
If you used the self-signed certificate approach, modern browsers will not let you connect to this websocket endpoint without that certificate being imported - they will emit an NET:ERR_CERT_AUTHORITY_INVALID message.
Every websocket connection bootstraps itself with https first, so to allow the certificate, visit the IP of your machine in the browser prefixed with https, like so: https://MY_IP. This should produce a "Not private" warning which you can skip by going to "Advanced" and the clicking on "Proceed to Site". You have now whitelisted this IP and its self-signed certificate for connecting.
Now you have a secure remote connect setup for your Substrate node.
Note that if you used Certbot, it should have made the path insertions below for you if you followed the

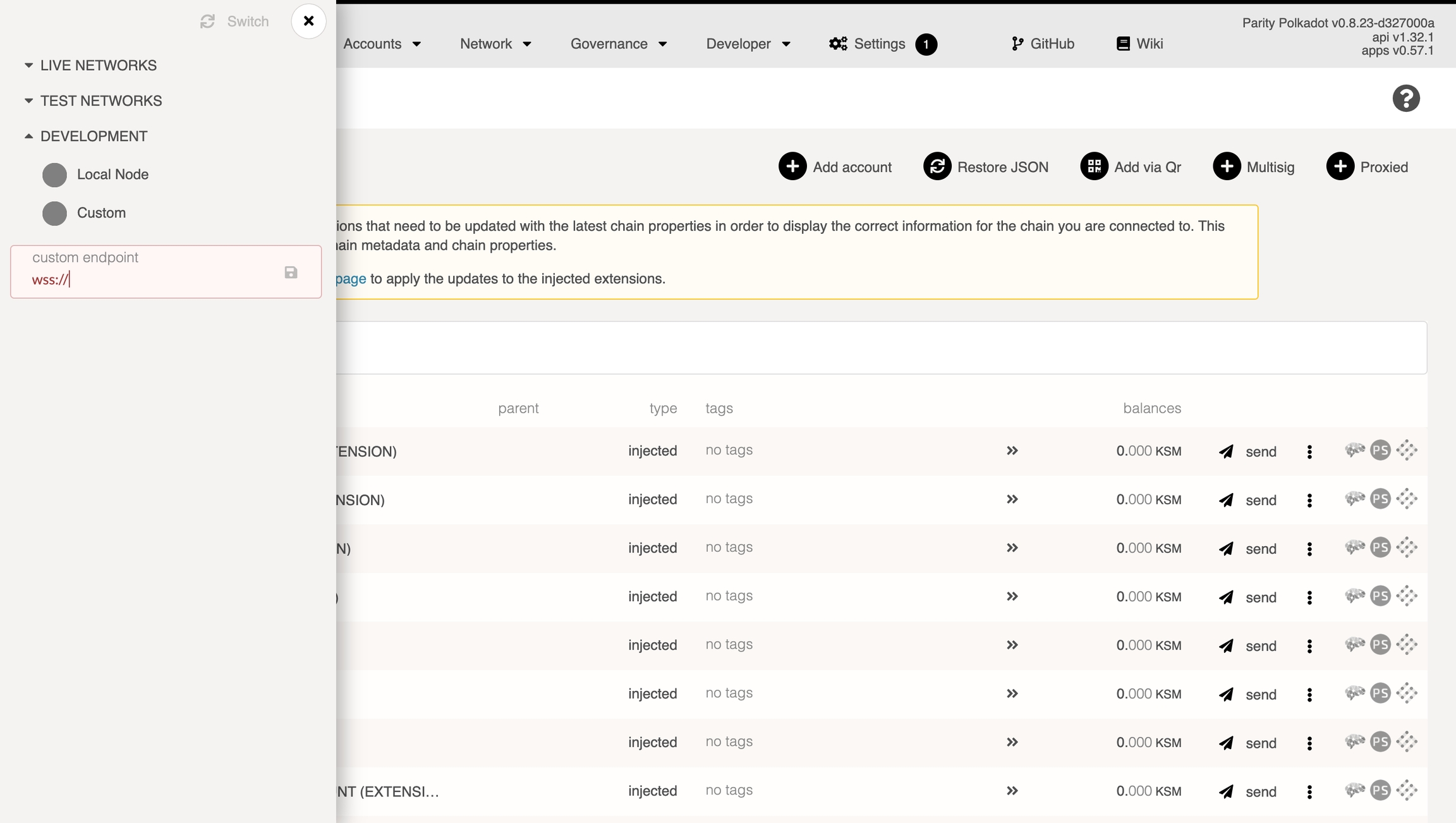

Open and click the logo in the top left to switch the node. Activate the "Development" toggle and input your node's address - either the domain or the IP address. Remember to prefix with wss:// and if you're using the 443 port, append :443, like so: wss://example.com:443.
